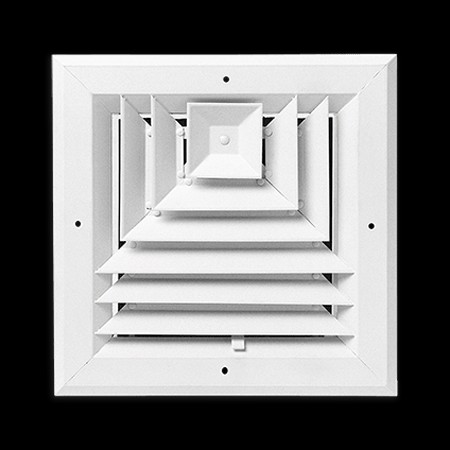

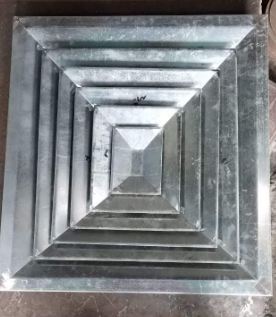

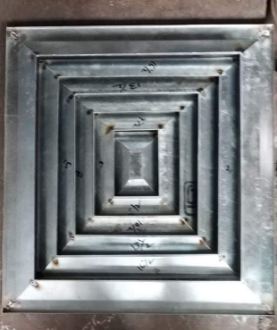

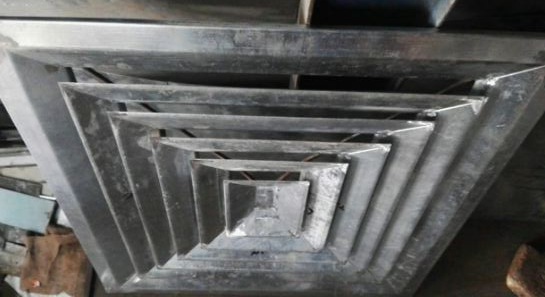

Frame and Blades is extruded aluminium alloy and are polyester powder coated with a white finish.
The Frame and blades have a typical wall thickness of 1/16”
The inner core of the diffuser is fully removable for easy installation. It is held in place with four machine screws and two spring steel clips which together Centre the core in the frame.
The ceiling diffuser projects 3/16” from the mounting surface.
The unit size increases in 3 inches increments beginning with 6 in x 6 in as the smallest available.
The opposed blade damper section connects to the frame with screws and is lever operated from the face of the unit.
The frame of the damper housing is separated from the blades with PVC bushings. This method of assembly eliminates corrosion and vibration.
Standard finish white for frame and blades. Damper in black color. Painted under electrostatic polyester powder coated system. Other colors available on request. The Polyester powders of highest quality are used to enhance the appearance of the units.
