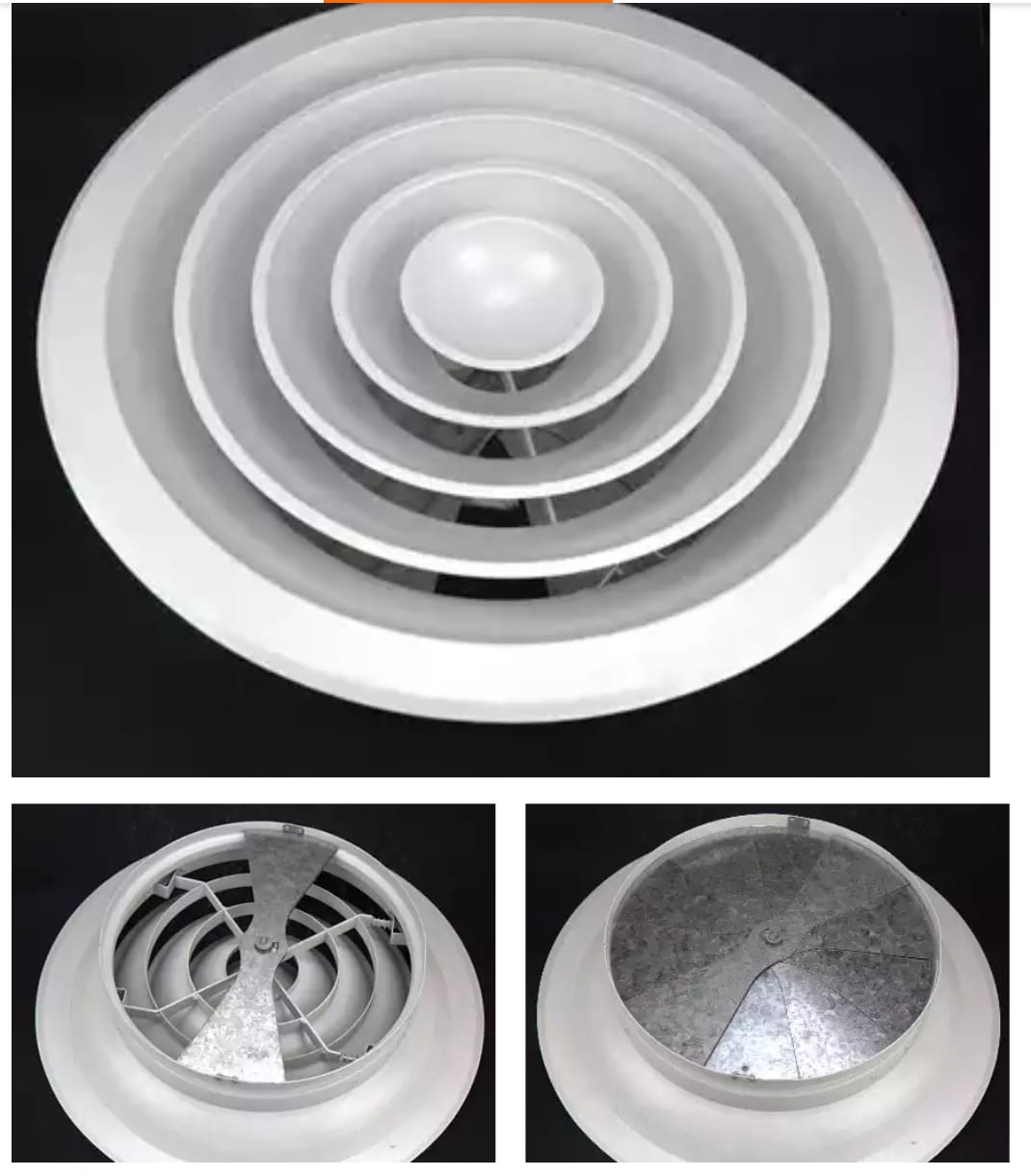

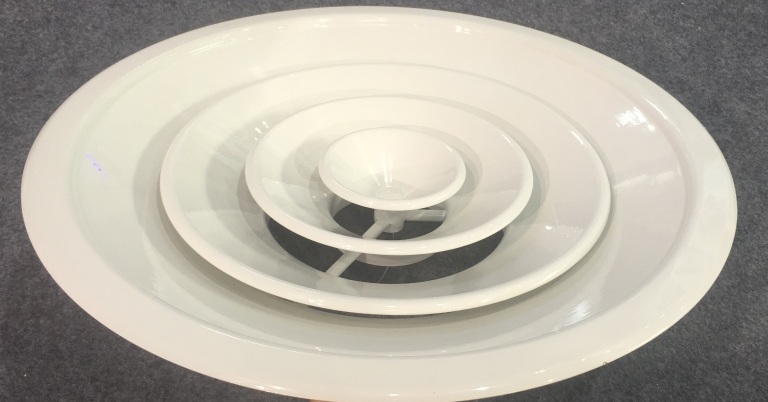

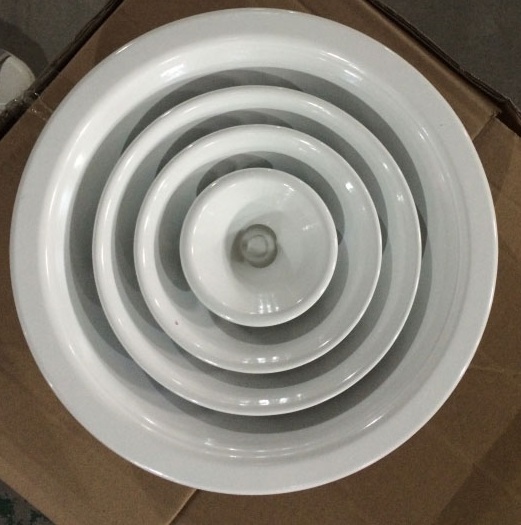

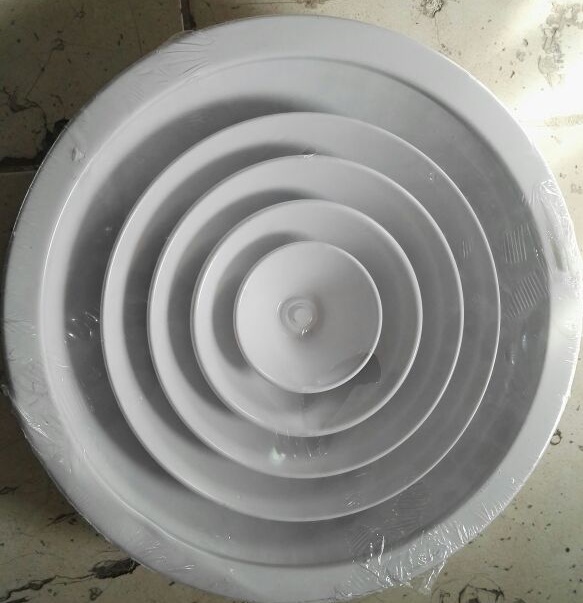

Supply or exhaust round ceiling diffuser with fully adjustable cores to provide horizontal or vertical air pattern.
The “UP” Position of the core provides vertical throw and “DOWN” position provides horizontal throw.
Expanded cones feature gives a high degree of mixing primary and secondary air that provides excellent air distribution and efficiency.
Remove inner core permit easy installation and access to duct.
Composed of 2 inner cones for sizes 6ӯ and 8ӯ, 3 inner cones for 10ӯ to 20ӯ.
Sponge gasket added to prevent streaking.
Construction: Aluminium
Standard Finish: White, Painted under electrostatic polyester powder coated system. Other colors available on request. The polyester powder of highest quality is used to enhance the appearance of the units.
Application Recommendation: Heating, Cooling or Ventilation with temperature differential of 30˚F and over requiring wide diffusion effect. For ceiling or exposed duct installation.
